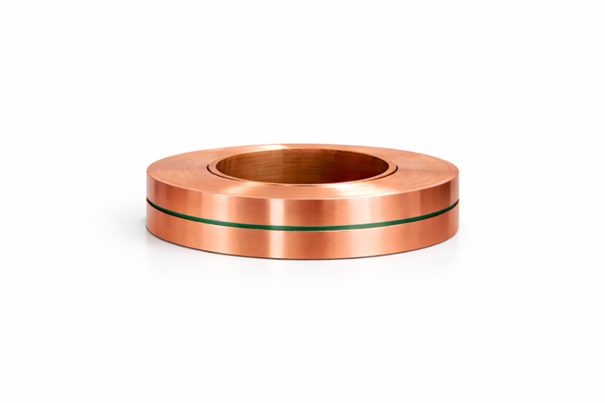

Copper Strips, Wire & Mesh

Product Description

Copper strips, wires, and mesh products are high-conductivity copper materials designed for electrical, industrial, and engineering applications requiring reliable electrical performance, dimensional consistency, and formability. Manufactured from high-purity electrolytic copper, these products are supplied in strip, wire, and woven mesh formats to support a wide range of conductive, winding, and grounding applications. Their excellent electrical and thermal conductivity, combined with corrosion resistance and processing flexibility, make them suitable for both heavy-duty industrial systems and precision electrical components.

Key Features

High-purity electrolytic copper for excellent electrical and thermal conductivity
Supplied instrip, wire, and woven mesh formats
Suitable for bending, winding, stamping, and forming operations
Consistent dimensional quality for industrial processing
Good corrosion resistance and long-term performance
Compatible with soldering, brazing, and crimping processes

Typical Applications

Transformer and electrical equipment manufacturing
Coil windings, busbars, and conductive components
Automotive electrical and thermal systems
Grounding, bonding, and shielding applications
Industrial electrical assemblies and infrastructure

Technical Data

Technical Property	Copper Strips / Wire / Mesh
Base Material	Electrolytic copper (Cu-ETP)
Purity	≥ 99.9%
Product Forms	Strip, wire, woven mesh
Strip Thickness Range	0.1 – 3.0 mm (typical)
Strip Width Range	Project-dependent
Wire Diameter Range	1.40 – 8.00 mm (typical)
Mesh Configurations	Woven copper mesh (7-wire, 19-wire patterns)
Electrical Conductivity	Very high
Formability	Excellent
Typical Surface Condition	Bright / annealed
Typical Applications	Electrical, industrial, and conductive systems

TDS available on request.

Elastomeric rubber pipe insulation is a flexible, durable solution specifically designed for HVAC systems, providing superior thermal efficiency and condensation control. Commonly used in heating, ventilation, and air conditioning applications, this material minimizes heat loss in pipes, ensures consistent system performance, and prevents moisture buildup that can lead to corrosion. Its closed-cell structure offers excellent resistance to water vapor, while its flexibility allows easy installation in tight spaces. Elastomeric rubber insulation is an ideal choice for extending the lifespan and efficiency of HVAC systems, contributing to overall energy savings and reduced maintenance costs.

Attribute	Pipe Insulation	Sheet Insulation
Diameter Range	6-114 mm	N/A
Thickness Range	6-50 mm	6-50 mm
Thermal Conductivity	0.034 W/mK (at 0°C)	0.034 W/mK (at 0°C)
Temperature Range	-50°C to +110°C	-50°C to +110°C
Water Vapor Permeability	≤0.15 (µ-factor ≥ 10,000)	≤0.15 (µ-factor ≥ 10,000)
Fire Class	B-s3, d0 (EN 13501-1)	B-s3, d0 (EN 13501-1)
Lamination Options	Unfaced, ALU	Unfaced, ALU
Applications	HVAC piping, refrigeration	Ductwork, large surfaces

Glass wool insulation is a versatile, high-performance solution for HVAC systems, available in blanket, board, and pipe formats. It provides excellent thermal and acoustic insulation, making it ideal for ducts, air handling units, and piping. The material’s lightweight and flexible structure allows for easy installation, adapting well to various shapes and reducing heat transfer effectively. Glass wool also offers sound-dampening qualities, enhancing indoor comfort. With high fire resistance and moisture control, glass wool insulation contributes to safer, more efficient HVAC systems, promoting energy savings and improved system durability.

Glass wool is suitable for applications with moderate temperature ranges, generally up to 250°C, and is often used in residential and light commercial HVAC systems.

Feature	Duct-Wrap	Board
Thickness	25, 40, 50 mm	25, 50, 100 mm
Thermal Conductivity (λ)	0.032 W/(m·K) at 10°C	0.034 W/(m·K) at 10°C
Thermal Resistance (R)	Varies by thickness; e.g., 0.75 (m²·K)/W at 25 mm	0.7 to 2.9 (m²·K)/W depending on thickness
Fire Resistance Class	A1 Non-combustible	A1 Non-combustible
Max Service Temp	Up to 250°C	Up to 250°C
Water Absorption	≤1 kg/m²	≤1 kg/m²
Acoustic Insulation	High	High
Certifications	EUCEB, EPD	EUCEB, EPD

Feature	ODE Starflex Pipe
Diameter Range	1/2″ to 12″
Thickness Range	25, 30, 40, 50,60,80,100 mm
Thermal Conductivity (λ)	0.033 W/(m·K) at 10°C
Thermal Resistance (R)	Varies by thickness and diameter
Fire Resistance Class	A1 Non-combustible
Max Service Temperature	Up to 250°C
Water Absorption	≤1 kg/m²
Lamination Options	Unfaced, ALU
Acoustic Insulation	High
Certifications	EUCEB, EPD

Stone wool insulation, available in blanket, board, and pipe formats, is a durable and highly effective choice for HVAC systems, offering superior thermal, acoustic, and fire-resistant properties. Commonly used in ductwork, piping, and air handling units, stone wool minimizes heat loss, enhances energy efficiency, and reduces noise levels within HVAC systems. Its non-combustible nature adds an essential layer of fire safety, while its moisture-resistant structure prevents mold growth. Stone wool insulation contributes to a long-lasting, efficient HVAC system, making it an ideal choice for both commercial and residential applications.
Stone wool can withstand higher service temperatures, typically up to 750°C, making it ideal for high-temperature ducts, industrial piping, and systems requiring fire resistance. Its non-combustible nature also adds critical fire safety.

Attribute	Stone Wool Board	Stone Wool Blanket ( Wire mesh)
Density	40-200 kg/m³	70-150 kg/m³
Thickness Range	40-180 mm	30-120 mm
Thermal Conductivity	0.033 – 0.040 W/mK	0.035 – 0.042 W/mK
Temperature Range	Up to 750°C	Up to 750°C
Fire Class	Non-combustible, A1 (EN 13501-1)	Non-combustible, A1 (EN 13501-1)
Lamination Options	Unfaced, ALU, BGT	Unfaced, ALU, BGT
Applications	HVAC ducts, walls, and partitions	HVAC ducts, pipes, and boilers
